Antistatic Lining

Definition and Overview

An antistatic lining is a lining designed to make it harder for electricity generated by friction to build up on the surface of the textile and easier for it to escape into the air. It is used as a measure against static electricity, which is more likely to occur in dry environments and in garments made with synthetic fibers.

Ordinary linings also have the role of improving slip and helping with putting on and taking off garments, but antistatic linings additionally focus on reducing clothing clinging to the legs or inner layers, as well as preventing dust and fuzz from adhering.

Areas of Use and Role

In jackets and coats, they are used for the body lining, sleeve lining, back lining, and similar areas. When used as sleeve lining, they make it easier to slip the arms through while reducing the discomfort caused by static electricity during layering.

In pants, skirts, and dresses, they are used as knee lining or full lining. They are considered when you want to reduce clinging to the legs, sticking caused by static electricity in the outer fabric, or bunching of the outer fabric while walking.

• Body lining: A lining that covers the inside of the body section and affects comfort and protection of the outer fabric.
• Sleeve lining: A lining used inside the sleeve that helps the arm go through more easily.
• Knee lining: A lining attached mainly around the knees of pants to support slip and abrasion resistance.

Materials and Types

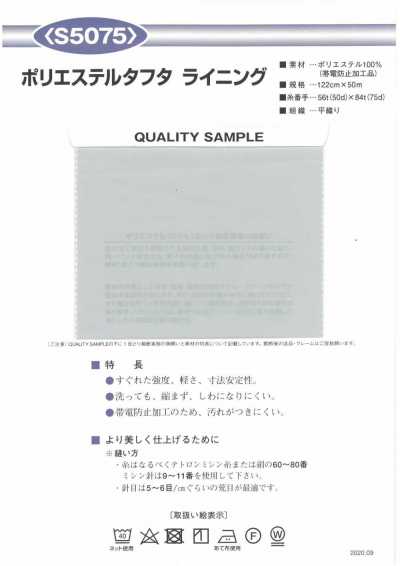

Antistatic properties are imparted through the nature of the fibers themselves, blending with antistatic thread, post-processing, and other methods. In addition to Cupro- and rayon-based linings, there are also polyester linings with antistatic properties. Not only the material, but also the weave structure, density, and finish affect the feel and performance.

Woven antistatic linings include smooth, slippery types, supple types, and crisp types. There are also antistatic linings with stretch to accommodate outer fabrics that stretch. In addition to antistatic performance, check the stretch and opacity needed for the intended use.

How to Choose and Points to Note

Compatibility with the outer fabric should be checked in advance by layering the materials. With brushed outer fabrics or outer fabrics with large texture, check the lining's slip, friction noise, and tendency to catch. For thin or light-colored outer fabrics, it is also important to see whether the lining's color, luster, or pattern shows through.

For knits and stretch wovens, choose a lining that does not hinder the stretch of the outer fabric. If only the lining does not stretch, stress may be placed on the seams during wear, leading to pulling or tearing. Check by stretching the outer fabric and lining together in the necessary directions.

The perceived effect of antistatic performance is also influenced by humidity, the material of the inner layers, and the wearer's movements. For this reason, it should be understood as a function to reduce discomfort caused by static buildup rather than something that completely eliminates static electricity, and it is important to conduct prototypes and wear tests.

Sewing Considerations and Differences from Similar Terms

Before cutting, check the grainline and the right and wrong sides to prevent catching, abrasion, and needle holes during cutting and sewing. Thin, slippery linings are prone to shifting during stitching, so adjust seam allowance handling, machine feeding, and needle and thread conditions to suit the textile.

Antistatic lining is a classification based on function, while body lining, sleeve lining, and knee lining are names based on the area of use. In addition, see through prevention lining mainly aims to reduce sheerness, and stretch lining mainly aims to provide elasticity. Some linings have these functions combined.

Frequently Asked Questions

Are antistatic lining and static-resistant lining the same?

In many cases, both refer to linings that have the function of reducing static buildup. However, the method of imparting antistatic properties and the way performance is expressed differ depending on the material and standard. When planning, do not judge by the name alone; check the material composition, processing details, and test information.

Can antistatic lining be used in jackets made of stretch material?

Yes, but you need to check whether the lining can follow the stretch of the outer fabric. If the lining does not stretch, the shoulders, back, and elbows are more likely to feel tight. Choose an antistatic lining with stretch, and confirm the range of motion and seam stress with a prototype.

Will using antistatic lining eliminate dust adhesion?

Antistatic lining helps reduce dust and fuzz adhesion by suppressing static buildup, but it does not completely prevent adhesion. The materials of the outer fabric and inner layers, dryness, and wearing environment also have an effect, so confirmation of the product as a whole is necessary.
