Hole-punching Ponte

Definition and Overview

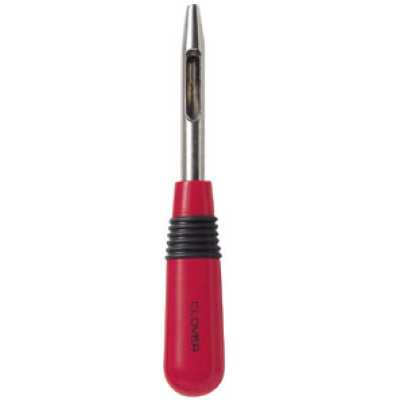

A hole-punching ponte is a tool that punches out material with the blade at its tip to make circular holes. In apparel accessory attachment, it is used to pre-punch holes for eyelet washers, cap and close posts, press fasteners, and similar fittings. Stabilizing the hole position and diameter leads to a neat finish.

A ponte is generally used by pressing its cutting edge against the material. For leather, belts, synthetic leather, interlining, and other thick or hard materials, a striking method is used, but with lightweight fabrics and stretch fabrics, care is needed to avoid hole distortion and fraying.

How to Use

Before processing, mark the center of the hole accurately with tailor's chalk or similar. Place a special rubber mat or cutting mat underneath the material to protect the blade edge and make punching easier. If you strike directly on a hard table or metal plate, the blade may chip or dull.

Set the ponte blade perpendicular to the mark and punch while holding the material so it does not shift. When attaching eyelet washers or cap and close posts, place the fitting temporarily after punching and, after confirming that the fitting shaft passes through smoothly, secure it with a setting tool.

• If the hole diameter is too large, the fitting is more likely to wobble or fall out.
• If the hole diameter is too small, excessive force is applied to the fitting or material, which can cause cracking or distortion.
• Before the actual work, do a test punch on the same material or on scraps.

Types and How to Choose

Hole-punching pontes include replaceable-blade types, where a single-diameter blade is swapped out for use, rotary types with multiple diameters, and screw types that cut by turning a screw. Choose the type that suits the required hole diameter, processing volume, material thickness, and work environment.

For eyelet washers and cap and close posts, confirm the hole diameter that suits the shaft diameter of the fitting being used and its attachment specifications. For leather and thick synthetic leather, a durable striking type is often used, while a screw type is an option when you want quiet work at a desk.

A rotary hole-punching tool is characterized by the ability to switch between multiple sizes. On the other hand, it may not punch through thick or hard materials sufficiently. Hole diameter accuracy, whether the blade can be replaced, and ease of grip are also points to check when selecting one.

Care and Safety Precautions

After use, remove any punched-out scraps or fiber lint remaining inside the blade, and store it away from moisture. If the blade edge becomes dull, the hole edges are more likely to fray and more force will be required. If reduced sharpness or chipping is observed, consider blade replacement or professional maintenance.

During work, it is important not to place your fingers near the blade edge or striking area. Do not hold the material down by hand; fix it with a jig if necessary. When using a hammer, work on a stable bench and make sure there are no people or fragile items nearby.

Differences from Similar Terms

An awl is a pointed tool used to mark sewing holes or spread fabric apart. Its hole-making method and purpose differ from those of a hole-punching ponte, which cuts round holes out of the material. For woven fabrics that fray easily, the area around the hole may be reinforced with eyelet washers or similar fittings rather than simply punching a hole.

A setting tool is used to attach fittings such as eyelet washers, cap and close posts, and press fasteners. A hole-punching ponte is mainly a tool for making pre-holes for inserting fittings, and the attachment process itself usually uses a dedicated setting tool or hand press.

Frequently Asked Questions

How should I choose the hole diameter for a hole-punching ponte?

Choose based on the shaft diameter of the eyelet washers, cap and close posts, press fasteners, or other fittings you are attaching, and on the attachment specifications provided by the manufacturer. As a basic rule, use the smallest size that allows the fitting to pass through, and always test punch on scraps. The suitable hole diameter also changes depending on the material thickness and elasticity.

Won't using a hole-punching ponte on fabric cause fraying?

Woven fabrics may fray from the edge of the punched hole. In particular, for lightweight or loosely woven fabrics, consider measures such as reinforcing the perimeter with eyelet washers rather than finishing with only a punched hole, or reinforcing it with the sewing specification. For knits, it is important to check stretch and hole expansion through testing.

What is the difference between a screw ponte and a striking ponte?

A screw ponte is a type that pushes the blade into the material by turning a handle or screw, allowing processing without a hammer. A striking type is a method in which the ponte is hit with a hammer to punch out the hole. Choose according to the hardness of the material, the number of items to process, the working noise, and the required hole diameter.
